产品详情

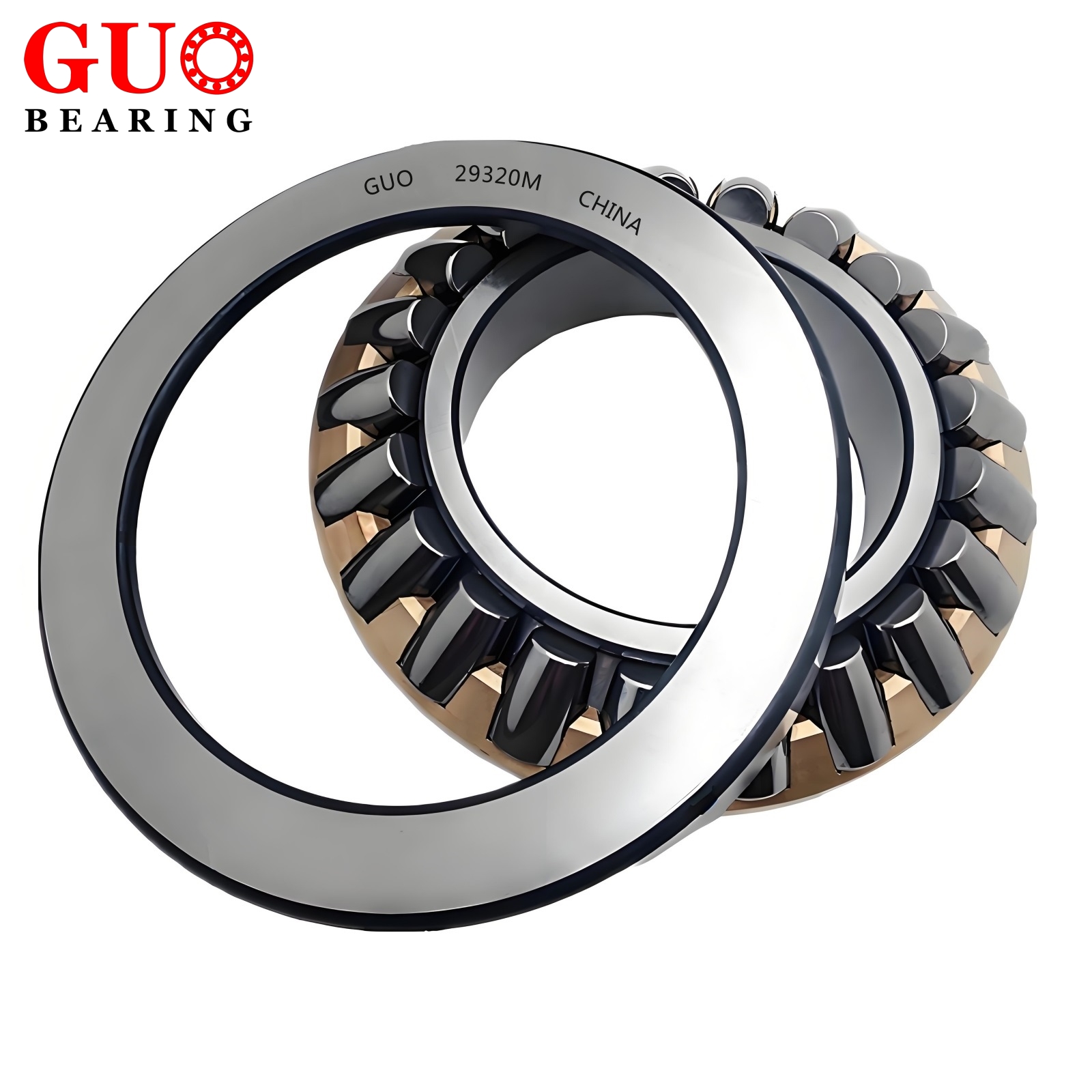

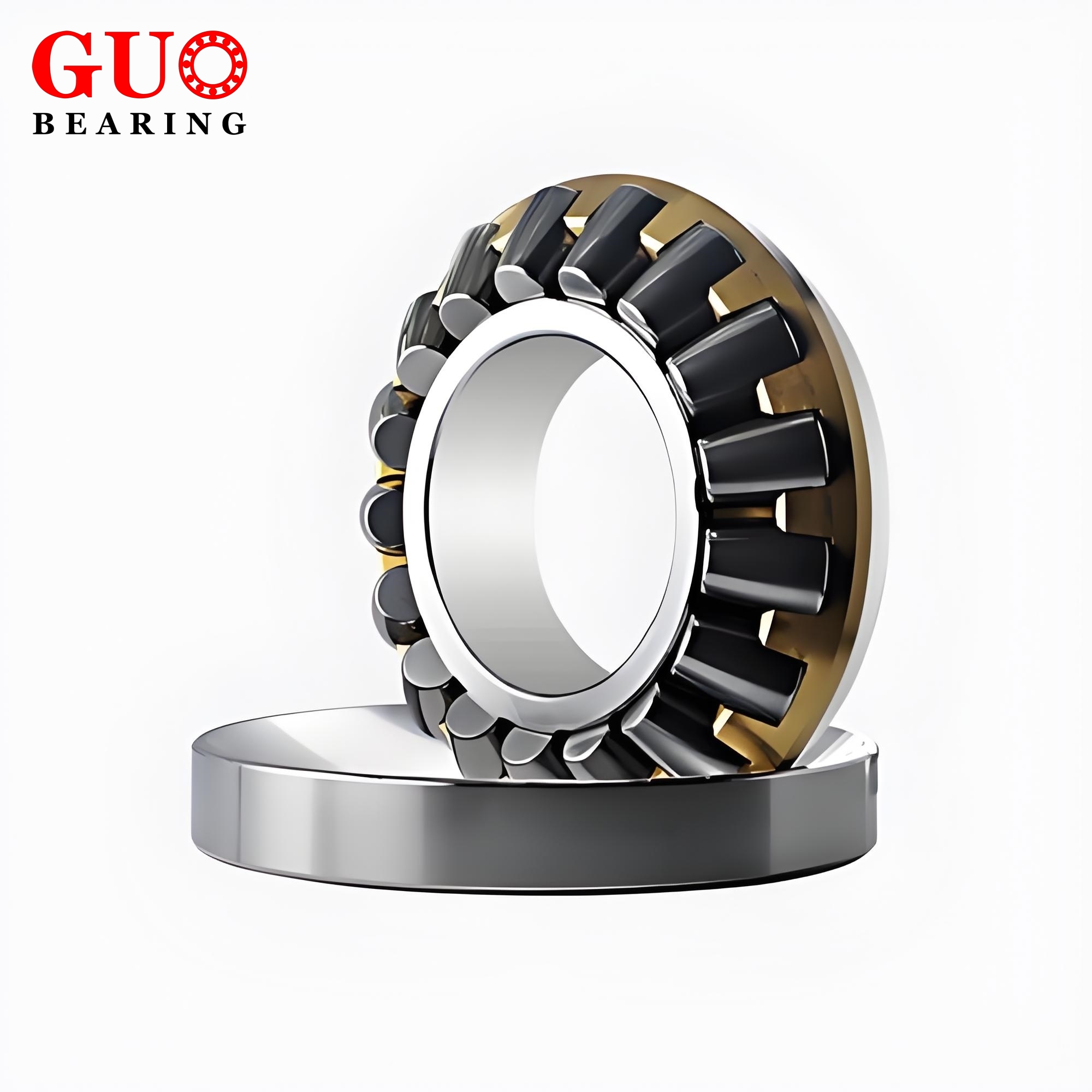

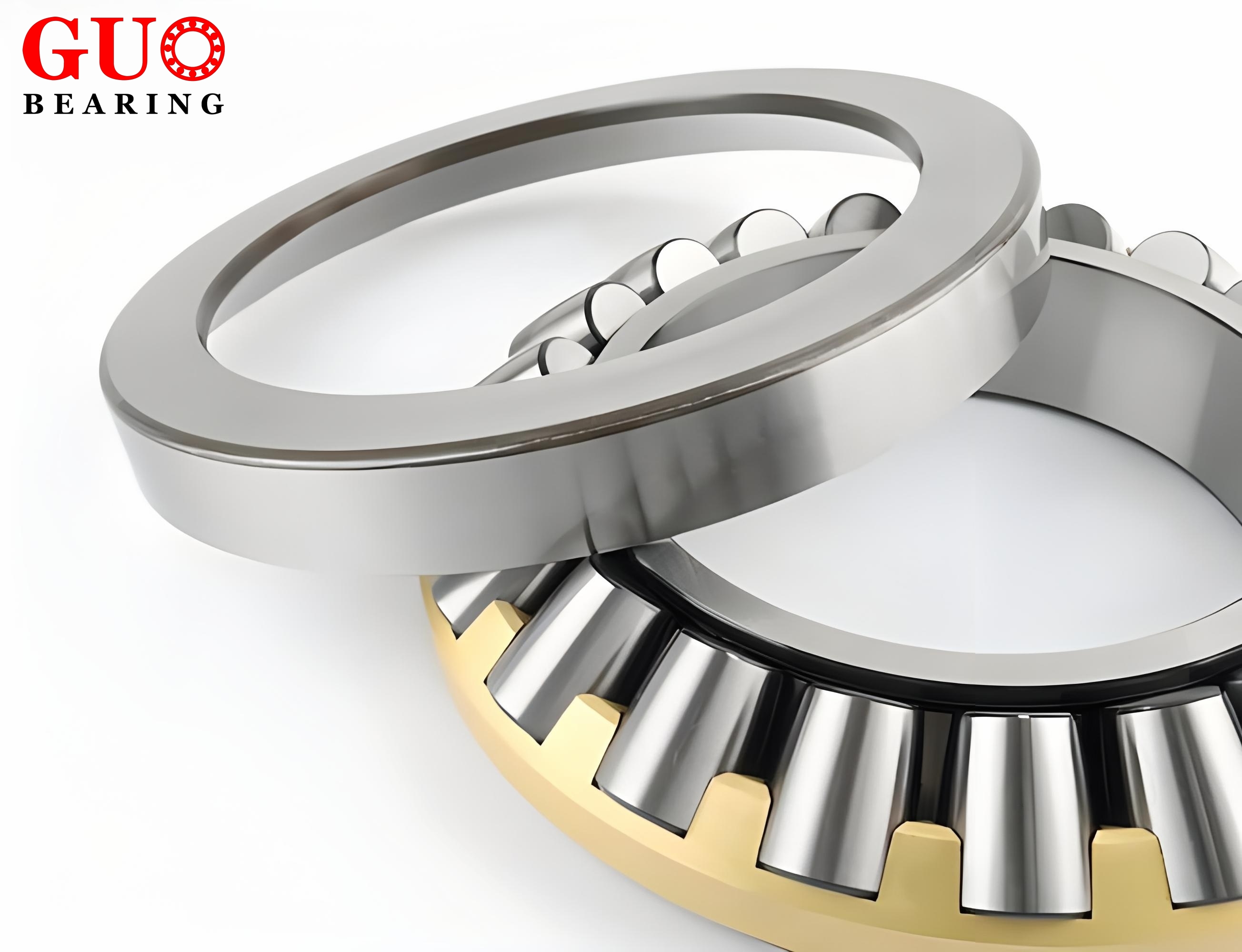

泉州推力滚子轴承系列29317-293/900型-国兴轴承-GUO轴承-福建泉州九类轴承-29317 29318 29320 29322 29324 29326 29328 29330 29332 29334 29336 29338 29340 29344 29348 29352 29356 29360 29364 29368 29372 29376 29380 29384 29388 29392 29396 293/500 293/530 293/560 293/600 293/630 293/670 293/710 293/750 293/800 293/850 293/900
新代号 | 旧代号 | 基本尺寸 | 重量 |
29317 | 9039317 | 85*150*39*111*138 | 2.9 |
29318 | 9039318 | 90*155*39*115.5*143.2 | 3.1 |
29320 | 9039320 | 100*170*42*127.5*159 | 4 |
29322 | 9039322 | 110*190*48*142*175.8 | 5.7 |
29324 | 9039324 | 120*210*54*156*193.5 | 7.9 |
29326 | 9039326 | 130*225*58*168*206.7 | 9.5 |
29328 | 9039328 | 140*240*60*183*221 | 11 |
29330 | 9039330 | 150*250*60*191.5*231.6 | 11.7 |
29332 | 9039332 | 160*270*67*205*249.6 | 15.4 |
29334 | 9039334 | 170*280*67*216*260.3 | 16.2 |
29336 | 9039336 | 180*300*73*227.5*278.8 | 20.7 |
29338 | 9039338 | 190*320*78*240.5*298.3 | 25.3 |
29340 | 9039340 | 200*240*85*259*314 | 31 |
29344 | 9039344 | 220*360*85*278.5*333.3 | 33.3 |
29348 | 9039348 | 240*380*85*299*354.4 | 35.5 |
29352 | 9039352 | 260*420*95*327.5*392.3 | 50.5 |
29356 | 9039356 | 280*440*95*346*410.8 | 53.2 |
29360 | 9039360 | 300*480*109*371.5*448 | 75.3 |
29364 | 9039364 | 320*500*109*393*467.3 | 78.3 |
29368 | 9039368 | 340*540*122*422*503 | 104 |
29372 | 9039372 | 360*560*122*442.5*523.3 | 109 |
29376 | 9039376 | 380*600*132*476*559.5 | 137 |
29380 | 9039380 | 400*620*132*490*580.6 | 144 |
29384 | 9039384 | 420*650*140*514.5*607.5 | 167 |
29388 | 9039388 | 440*680*145*539*636 | 189 |
29392 | 9039392 | 460*710*150*565.5*663.5 | 212.5 |
29396 | 9039396 | 480*730*150*582*685.5 | 221.5 |
293/500 | 90393/500 | 500*750*150*601.5*709.5 | 230 |
293/530 | 90393/530 | 530*800*160*642*750 | 278 |
293/560 | 90393/560 | 560*850*175*674.5*803.8 | 358 |
293/600 | 90393/600 | 600*900*180*719.5*853.7 | 404.5 |
293/630 | 90393/630 | 630*950*190*763.5*891.4 | 466 |
293/670 | 90393/670 | 670*1000*200*799*948.6 | 552 |
293/710 | 90393/710 | 710*1060*212*857*996.7 | 635 |
293/750 | 90393/750 | 750*1120*224*905.5*1054.8 | 755 |
293/800 | 90393/800 | 800*1180*230*958*1112.2 | 842 |
293/850 | 90393/850 | 850*1250*246*1017*1177.6 | 990 |
293/900 | 90393/900 | 900*1320*250*1083.5*1240.2 | 1117 |
